Overview of Shafts, Bushings and Sleeves from A.MANNESMANN
As a specialist in geometrically sophisticated and high-precision machine elements, we produce a wide range of shafts, bushings and sleeves with decades of expertise from our company.

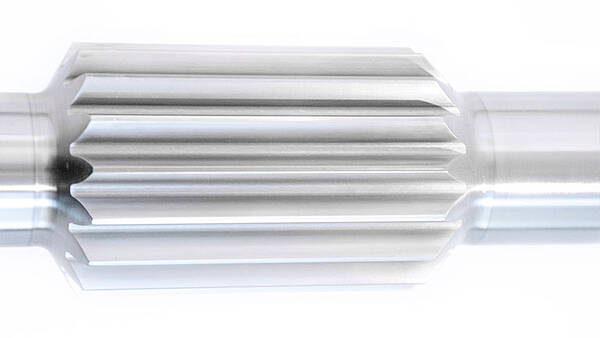

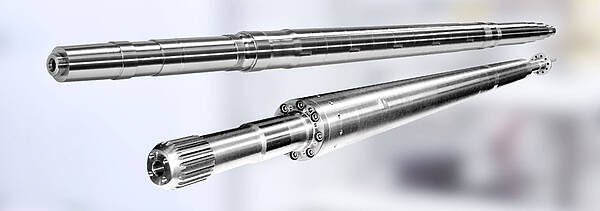

Examples of Different Designs for Shafts from A.MANNESMANN
Actuators, drive shafts, CFK shafts, torque shafts, flange shafts, main shafts, coil mandrels, Guide columns, spline shafts, straightening rollers, cutter blocks, measurement shafts, sleeves, pump shafts, pinion shafts, piston rods, screw shafts, screw mandrels, screw bodies, clamping shafts, control shafts, crucible shafts, turbine shafts, connection shafts, winding shafts, winding mandrels, gear shafts, crystal shafts, intermediate shafts ...

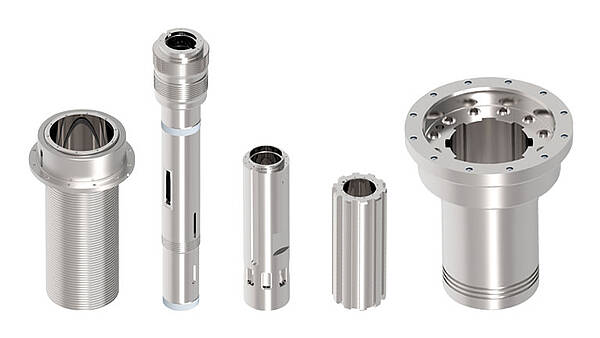

Examples of Different Designs for Bushings and Sleeves from A.MANNESMANN
Composite bushings, slide bushings, plain bearing bushes, flange bushings, grooved bushings, cylinder bushings, cylinder liners, guide sleeves, slide sleeves, rams (for spindle sets) ...
Customer-Specific Production
A.MANNESMANN produces and supplies machine elements individually, which is why we can only name the most frequently requested production forms here. Of course we also produce a wide range of machine components individually according to your customer specification as individual parts, small series or series. We will be happy to provide you with information about our production options. Please let us know about your request or send us your inquiry.
Advantages at a Glance
Economical advantages
- Economical production through specialization
- Individual pieces, small series, series production, assemblies
- High precision and wear resistance
- Ready to install according to your drawings / specifications
- Specialist in high degrees of slenderness
- Completely machined directly by the manufacturer, including in-house heat treatment
- MADE IN GERMANY
Technical advantages
- With a high surface quality, including heat treatment
- All dimensions
- Lengths possible up to 15,000 mm
- Machine elements > 5 tons
- Geometrically sophisticated machine elements
- Precision up to 1 µm
- The highest balancing quality
- Balance-free production with the best smooth running at high speeds
Special Expertise
Production of a wide range of geometrically sophisticated, rotationally symmetrical machine elements with a high degree of slenderness in the highest level of accuracy.
Manufacturing Lengths
We produce in varying lengths up to 15 m.
Diameter
We produce our machine elements in a wide range of diameters from 25 to 500 mm.
Precision
We produce with an accuracy up to 1 µm according to customer requirements. As desired, we provide accuracy qualities of IT 1, IT 3 or IT 5.
Weight
We produce workpieces from small weights up to a unit weight of 5 tons.
Hardnesses
The heat treatment occurs in-house. We use up to 16 m soaking pits for the vertical thermal treatment and nitride in-house.
Surface Hardness
We achieve a surface hardness of 900 HV for maximum wear protection.
Surface Quality
Our workpieces are ground, lapped, super-finished, micro-finished and deep-nitrided up to 900 HV in the surface qualities.
Machining
We can process machine elements in all standard machining methods: Turning, milling, drilling, deep hole drilling, whirling, grinding, thread grinding, honing.
