AMS absolute. Cost savings in terms of design, production, logistics and commissioning.
To receive a quote please fill in this form below. One of our sales representatives is glad to help you.
The product AMSABS 3B for roller guideways now combines proven magneto-resistive measuring technology with an absolute digital interface.
With the proven advantages of AMS products like
We have added the following additional features to simplify the operation of distance measuring systems in industrial environments.
The AMSABS features an absolute interface for connection to SSI, SSI+SinCos and all Fanuc controllers. The Siemens DRIVE CLiQ®* and Mitsubishi interface have recently been added. The Siemens DRIVE CliQ interface is certified in accordance with SIL 1.
(*DRIVE-CLiQ is a protected trade mark of Siemens)
The MONORAIL AMS 3B, for example, is an integrated magneto-resistive distance measuring system based on the MONORAIL MR roller profile guideway. This ensures compact axes with distance measurement and guidance that is especially suitable for use in machine tool applications. No additional assembly or adjustment of the measuring system is required by the operator; In fact, it delivers cost savings in the design, manufacture, and maintenance of the equipment. And, by using the AMS 3B, accuracy and process reliability are improved
The integrated AMS distance measuring system from SCHNEEBERGER can be perfectly integrated into MONORAIL guideways – both roller guideways and ball guideways – and ensures exact travel distances with tolerances of ±5 µm/m.
More information:
Link to press release
Digital and analog measuring systems enable precise linear motion and maintain the tightest tolerances
 |  |  | | | |  |  |  | |
|---|---|---|---|---|---|---|---|---|---|
| Type AMSA 3B | Type AMSD 3B | Type AMSA 4B | Type AMSD 4B | Type AMSABS 3B | Type AMSABS 4B | Type AMSA 3L | Type MINISCALE PLUS | Type MINISLIDE MSQscale | |
| More | More | More | More | More | More | More | More | ||
| Magnetoresistiv |  | |
| | | | | ||
| Optical | | | |||||||
| Usable with MONORAIL MR | | | | | |||||
| Usable with MONORAIL BM | | | | ||||||
| Usable with MINIRAIL | | ||||||||
| Incremental measuring method | | | | | | | | ||
| Absolute measurement method | | | |||||||
| Usable with MSQ | |
100% best choice
75%
50%
25% good choice
0%Dimensions and capacities
Links to the following sizes:
AMSABS 3B 25 Integrated measuring system absolut with rollers
AMSABS 3B 30 Integrated measuring system absolut with rollers
AMSABS 3B 35 Integrated measuring system absolut with rollers
AMSABS 3B 45 Integrated measuring system absolut with rollers
AMSABS 3B 55 Integrated measuring system absolut with rollers
AMSABS 3B 65 Integrated measuring system absolut with rollers
Various options regarding lubrification and sealing of the measuring carriages mean that optimal adjustments can be made to the requirements of the application. The easily exchangeable reading head is identical and replaceable for all sizes.
Dimensions and capacities
Links to the following sizes:
AMSABS 3B 25 Integrated measuring system absolut with rollers
AMSABS 3B 30 Integrated measuring system absolut with rollers
AMSABS 3B 35 Integrated measuring system absolut with rollers
AMSABS 3B 45 Integrated measuring system absolut with rollers
AMSABS 3B 55 Integrated measuring system absolut with rollers
AMSABS 3B 65 Integrated measuring system absolut with rollers

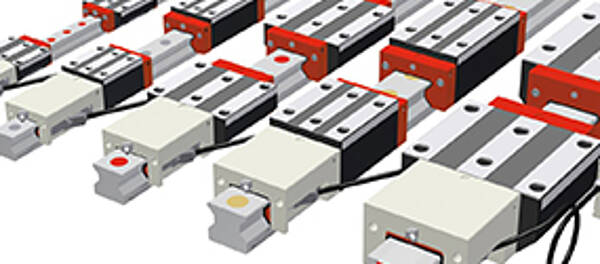

With the MONORAIL AMSABS 3B, SCHNEEBERGER provides an integrated measuring system for absolute distance measurement for use in automation engineering, mechanical handling technology and machine tool engineering, whereby high force absorption and precise distance measurements are required in small assembly spaces. From a mechanical point of view, the AMSABS 3B is based on the MONORAIL MR roller guide up to a length of 6m. The distance measurement system’s compact housing facilitates the construction of highly compact axes. SCHNEEBERGER provides an absolute interface with various cable lengths to connect it with the SSI, SSI+SinCos, FANUC, Mitsubishi and Siemens Drive CliQ® controllers
Our customers' requirements:
A space-saving and quick-to-assemble distance measuring system, which is close to the machining process.
Our solution:
Integrated distance measuring system - high-precision, reliable and low-maintenance.
The selected size can be configured and is available in all common data formats Please click on the appropriate size combination to start downloading.
By clicking on the following link you will be automatically redirected to CADENAS.
SCHNEEBERGER offers a comprehensive spectrum of services such as repairs, maintenance as well as technical support
