MINI-X = guide miniaturizzate, Carrelli MINIRAIL con lubrificazione a lunga durata LUBE-S, microtavole a rulli e sistema di misura della distanza integrato
Le guide miniaturizzate sono compatte e precise per garantire la massima produttività. Guide senza manutenzione: serbatoio per il lubrificante integrato direttamente nei.
Le guide miniaturizzate MINIRAIL, le microtavole a rulli MINISLIDE e il sistema di misura della distanza integrato MINISCALE PLUS, di maggior rilievo grazie al grado elevato di precisione, resistenza e versatilità, sono stati sviluppati per garantire velocità e accelerazioni elevate nel processo di lavoro.
This new innovative, as well as patented ball deflection guarantees perfect, fine running behaviour for speeds up to 3 m/s and accelerations up to 250 m/s2.
Guide senza manutenzione: serbatoio per il lubrificante integrato direttamente nei
MINIRAIL l’ultima generazione di guide miniaturizzate per le applicazioni più sofisticate. Sono guide estremamente robuste, perfettamente adatte per ogni applicazione grazie al loro elevato scorrimento, la loro precisione ed affidabilità.
Carrelli MINIRAIL con lubrificazione a lunga durata LUBE-S
MINIRAIL – una gamma di prodotti ad alta precisione
MINI-X Impressions
La forma, il tipo di materiale e la struttura della superficie delle piste e dell’entrata delle sfere garantiscono una pulsazione ridotta al minimo e di conseguenza uno scorrimento molto silenzioso.
La linea comprende otto larghezze di rotaie che possono essere combinate con fino a quattro dimensioni di carrello.
Versione a carrello corto (Codice ordine MNNS). La migliore scelta per installazioni in spazi limitati.
Carrello corto: i vantaggi per il cliente:
Il carrello corto e compatto è adatto per installazioni in spazi piccoli
Massimo livello di precisione
Lunga vita di servizio
Frequently Asked Questions about MINIRAIL Guideways from SCHNEEBERGER
What does lifetime lubrication mean for MINIRAIL?
Lifetime lubrication refers to a one-time filling of lubricant at the friction points, which does not need to be renewed or replaced throughout the product’s lifespan. SCHNEEBERGER has developed and patented the innovative LUBE-S system for this purpose.
What are the advantages of the LUBE-S system?
LUBE-S provides maintenance-free operation for up to 20,000 km under normal conditions. The lubricant is directly applied to the balls in the load zone without affecting the carriage length or maximum stroke. This significantly reduces maintenance costs and lowers lubricant consumption, making it more environmentally friendly.
How does the LUBE-S system work?
LUBE-S is a sophisticated lubricant reservoir that, via capillary action, dispenses lubricant to the balls located in the load zone. The system is fully integrated into the carriage and ensures reliable lubrication even in applications with short strokes.
Can LUBE-S be integrated into any application?
LUBE-S can be used in almost all applications, but special applications such as vacuum and cleanroom environments are not suitable for the LUBE-S system.
What are the benefits of MINIRAIL guideways?
MINIRAIL guideways excel in high precision and durability. Their design ensures high process reliability and allows for speeds of up to 5 m/s and accelerations of up to 300 m/s².
What options enhance the use of MINIRAIL guideways?
Defined displacement force (VD): For demanding applications, the displacement force can be customized.
Height-matched carriages (HA): In certain cases, the tolerance range of the carriages can be customized to allow for tighter height variations.
Multi-piece rails (ZG): For longer applications, individual rails can be butt-jointed and ground together.
Custom lubrication (KB): For specific areas of use, such as high speeds or extreme temperatures, SCHNEEBERGER offers suitable lubrication solutions.
In what sizes are MINIRAIL guideways available?
MINIRAIL rails come in standard widths of 7, 9, 12, and 15, as well as wide sizes of 14, 18, 24, and 42. The carriages are available in four lengths: MNNS (short), MNN (standard), MNNL (long), and MNNXL (extra-long).
Can MINIRAIL carriages be interchanged?
Yes, MINIRAIL carriages are designed to be fully interchangeable with one another at any time. This unit carriage system simplifies inventory management and significantly reduces maintenance effort.
What does lifetime lubrication mean for MINIRAIL? //
Lifetime lubrication refers to a one-time filling of lubricant at the friction points, which does not need to be renewed or replaced throughout the product’s lifespan. SCHNEEBERGER has developed and patented the innovative LUBE-S system for this purpose.
What are the advantages of the LUBE-S system? //
LUBE-S provides maintenance-free operation for up to 20,000 km under normal conditions. The lubricant is directly applied to the balls in the load zone without affecting the carriage length or maximum stroke. This significantly reduces maintenance costs and lowers lubricant consumption, making it more environmentally friendly.
How does the LUBE-S system work? //
LUBE-S is a sophisticated lubricant reservoir that, via capillary action, dispenses lubricant to the balls located in the load zone. The system is fully integrated into the carriage and ensures reliable lubrication even in applications with short strokes.
Can LUBE-S be integrated into any application? //
LUBE-S can be used in almost all applications, but special applications such as vacuum and cleanroom environments are not suitable for the LUBE-S system.
What are the benefits of MINIRAIL guideways? //
MINIRAIL guideways excel in high precision and durability. Their design ensures high process reliability and allows for speeds of up to 5 m/s and accelerations of up to 300 m/s².
What options enhance the use of MINIRAIL guideways? //
Defined displacement force (VD): For demanding applications, the displacement force can be customized.
Height-matched carriages (HA): In certain cases, the tolerance range of the carriages can be customized to allow for tighter height variations.
Multi-piece rails (ZG): For longer applications, individual rails can be butt-jointed and ground together.
Custom lubrication (KB): For specific areas of use, such as high speeds or extreme temperatures, SCHNEEBERGER offers suitable lubrication solutions.
In what sizes are MINIRAIL guideways available? //
MINIRAIL rails come in standard widths of 7, 9, 12, and 15, as well as wide sizes of 14, 18, 24, and 42. The carriages are available in four lengths: MNNS (short), MNN (standard), MNNL (long), and MNNXL (extra-long).
Can MINIRAIL carriages be interchanged? //
Yes, MINIRAIL carriages are designed to be fully interchangeable with one another at any time. This unit carriage system simplifies inventory management and significantly reduces maintenance effort.
MINI-X - Catalogo dei prodotti
MINIRAIL / MINISCALE PLUS / MINISLIDEScarica ora
MINIRAIL Size 5
High-precision miniature guideways
with impeccable running characteristicsScarica ora
Our new production hall in Switzerland
MINIRAIL film
MINIRAIL – massima affidabilità per accelerazioni fino a 300 m/s2 e velocità fino a 5 m/s
SCHNEEBERGER MINISCALE PLUS, MINIRAIL, MINISLIDE, Formular-S and LUBE-S
SCHNEEBERGER overview linear bearings and positioning systems
Article/Example of application
Schweizer Qualität und Präzision
Automated assembly systems with high positional accuracies guarantee the vibration free running of SCHNEEBERGER MINIRAIL.Scarica ora
Damit alles glatt läuft
With a high-precision, compact servo press for loading watch movement plates, SCHNEEBERGER MINIRAIL miniature guideways ensure high precision, ease of movement and strength.Scarica ora
SCHNEEBERGER miniatur guideway MINIRAIL with integrated measuring system
For designers who have to fit high-precision linear technology with integral distance measurement in very small spaces, SCHNEEBERGER now offers the new MINISCALE PLUS optical incremental distance measuring system.Scarica ora
The secret of linear technolgy
From standard components to complete systems, SCHNEEBERGER offers a unique spectrum of products and services. And we do it all for our customers’ benefit.Scarica ora

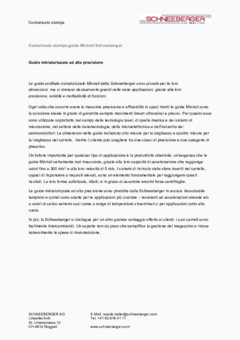

Comunicati stampa
