MINI-X = Minyatür kızaklar, uzun ömürlü Yağlama Yağı LUBE-S ile MINIRAIL taşıyıcılar, mikro sürtünmesiz tablalar ve entegre mesafe ölçüm sistemi
Minyatür kılavuzlar, maksimum verimliliği sağlamak için kompakt ve hassas tasarıma sahiptir. Bakım gerektirmeyen kızaklar: Yağlama yağı deposu doğrudan.
Hassasiyet, dayanıklılık ve çok yönlülükleri sayesinde büyük bir etkiye sahip MINIRAIL minyatür kılavuzlar, MINISLIDE mikro sürtünmesiz tablalar ve MINISCALE PLUS entegre mesafe ölçüm sistemleri, iş sürecinde yüksek hızlar ve ivmeler için geliştirilmiştir.
This new innovative, as well as patented ball deflection guarantees perfect, fine running behaviour for speeds up to 3 m/s and accelerations up to 250 m/s2.
Bakım gerektirmeyen kızaklar: Yağlama yağı deposu doğrudan.

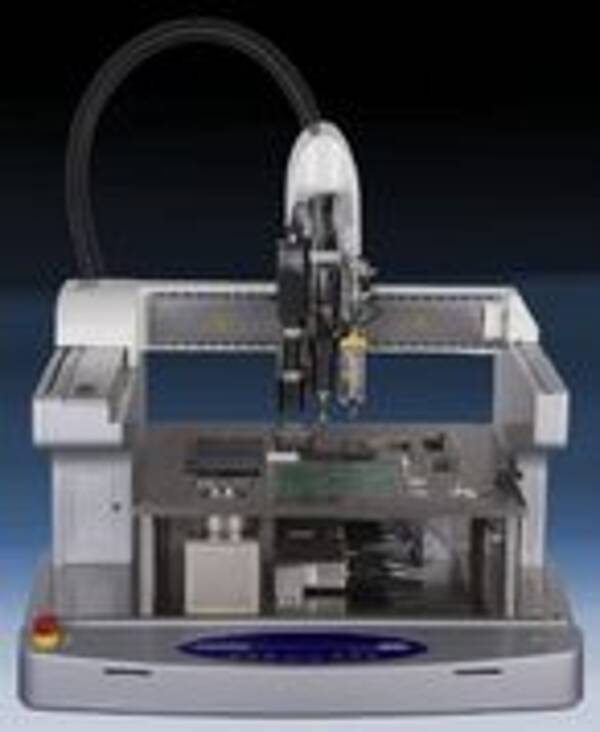

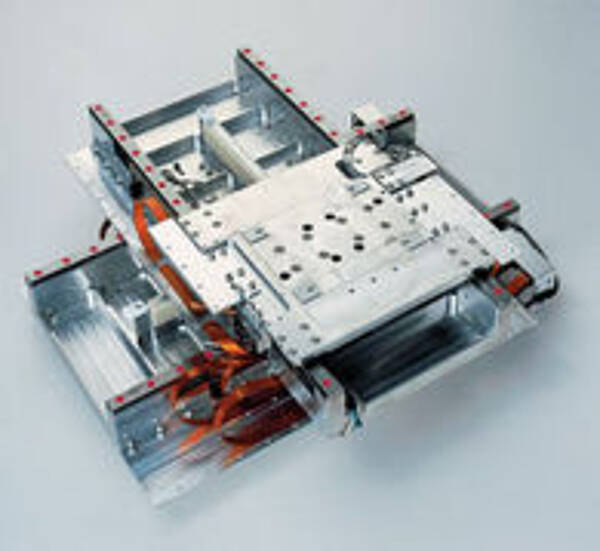

MINIRAIL sofistike uygulamalar için en son minyatür kılavuz neslini temsil eder. Yüksek derecede sağlamdır ve sorunsuz çalışma, hassasiyet ve güvenilirlikleri her uygulamada gösterilmektedir.

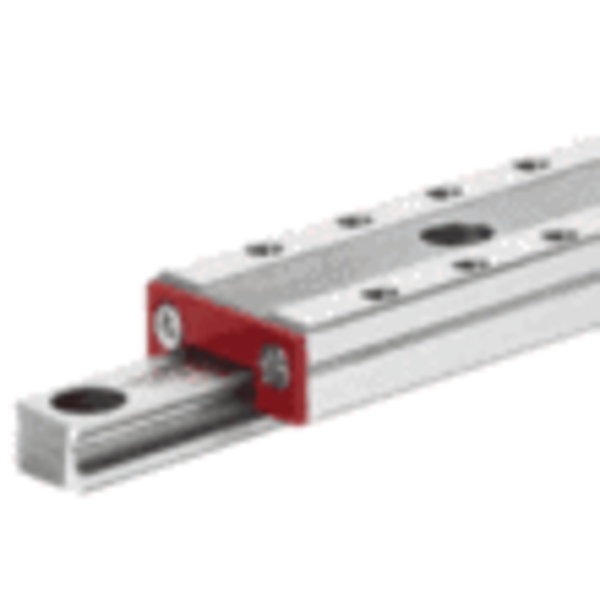

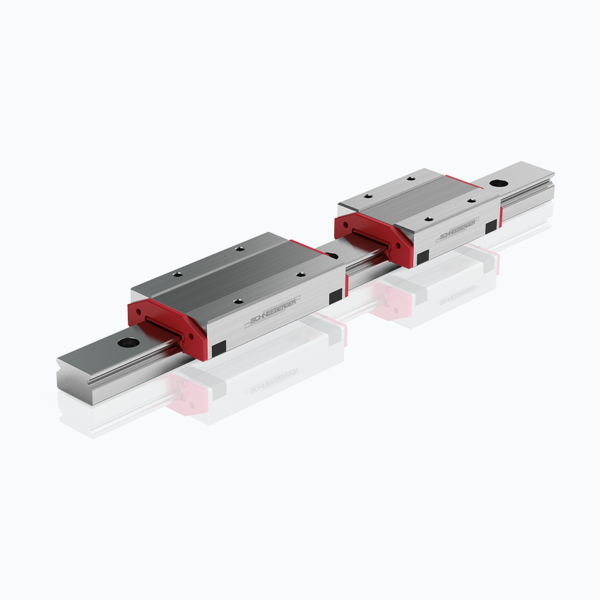

Uzun ömürlü Yağlama Yağı LUBE-S ile MINIRAIL taşıyıcılar
Tasarım, malzeme seçimi ve devridaim elemanının ve bilye giriş bölgesinin yüzey son katı, düşük titreşmeyi ve böylelikle sorunsuz sürüşü garantiler.
Aralık, en çok dört araba boyutu ile birlikte olabilen sekiz ray genişliğini içerir.
kısa araba versiyonu (Sipariş kodu MNNS). Kısıtlı montaj alanları için en iyi tercihtir.

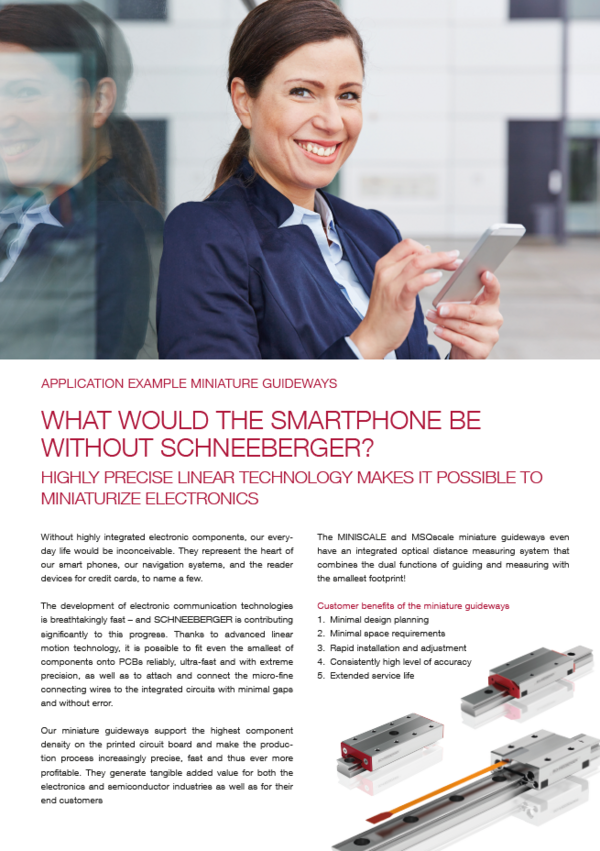

Kısa araba için müşteri faydaları:
Kompakt, kısa araba küçük kurulum alanları için ideal olarak uygundur.
İstikrarlı yüksek doğruluk düzeyi
Uzun kullanım ömrü
Frequently Asked Questions about MINIRAIL Guideways from SCHNEEBERGER
What does lifetime lubrication mean for MINIRAIL?
Lifetime lubrication refers to a one-time filling of lubricant at the friction points, which does not need to be renewed or replaced throughout the product’s lifespan. SCHNEEBERGER has developed and patented the innovative LUBE-S system for this purpose.
What are the advantages of the LUBE-S system?
LUBE-S provides maintenance-free operation for up to 20,000 km under normal conditions. The lubricant is directly applied to the balls in the load zone without affecting the carriage length or maximum stroke. This significantly reduces maintenance costs and lowers lubricant consumption, making it more environmentally friendly.
How does the LUBE-S system work?

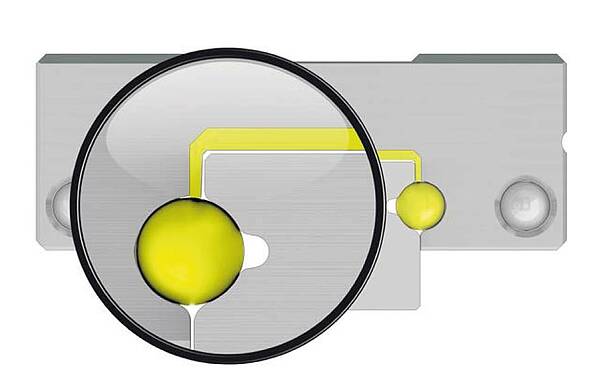

LUBE-S is a sophisticated lubricant reservoir that, via capillary action, dispenses lubricant to the balls located in the load zone. The system is fully integrated into the carriage and ensures reliable lubrication even in applications with short strokes.
Can LUBE-S be integrated into any application?
LUBE-S can be used in almost all applications, but special applications such as vacuum and cleanroom environments are not suitable for the LUBE-S system.
What are the benefits of MINIRAIL guideways?
MINIRAIL guideways excel in high precision and durability. Their design ensures high process reliability and allows for speeds of up to 5 m/s and accelerations of up to 300 m/s².
What options enhance the use of MINIRAIL guideways?
Defined displacement force (VD): For demanding applications, the displacement force can be customized.
Height-matched carriages (HA): In certain cases, the tolerance range of the carriages can be customized to allow for tighter height variations.
Multi-piece rails (ZG): For longer applications, individual rails can be butt-jointed and ground together.
Custom lubrication (KB): For specific areas of use, such as high speeds or extreme temperatures, SCHNEEBERGER offers suitable lubrication solutions.
In what sizes are MINIRAIL guideways available?

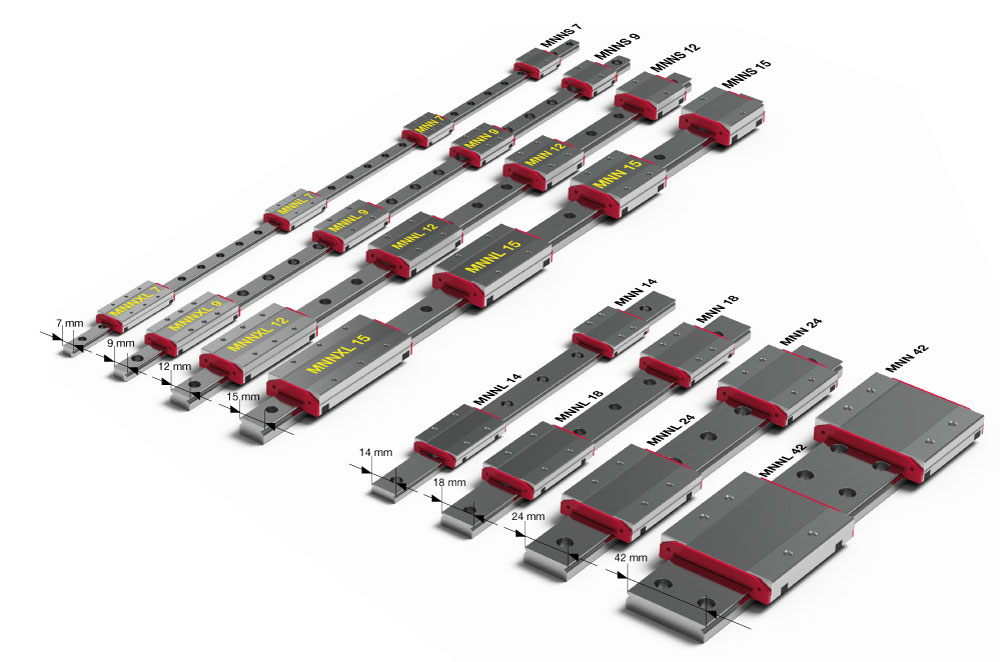

MINIRAIL rails come in standard widths of 7, 9, 12, and 15, as well as wide sizes of 14, 18, 24, and 42. The carriages are available in four lengths: MNNS (short), MNN (standard), MNNL (long), and MNNXL (extra-long).
Can MINIRAIL carriages be interchanged?
Yes, MINIRAIL carriages are designed to be fully interchangeable with one another at any time. This unit carriage system simplifies inventory management and significantly reduces maintenance effort.
What does lifetime lubrication mean for MINIRAIL? //
Lifetime lubrication refers to a one-time filling of lubricant at the friction points, which does not need to be renewed or replaced throughout the product’s lifespan. SCHNEEBERGER has developed and patented the innovative LUBE-S system for this purpose.
What are the advantages of the LUBE-S system? //
LUBE-S provides maintenance-free operation for up to 20,000 km under normal conditions. The lubricant is directly applied to the balls in the load zone without affecting the carriage length or maximum stroke. This significantly reduces maintenance costs and lowers lubricant consumption, making it more environmentally friendly.
How does the LUBE-S system work? //
LUBE-S is a sophisticated lubricant reservoir that, via capillary action, dispenses lubricant to the balls located in the load zone. The system is fully integrated into the carriage and ensures reliable lubrication even in applications with short strokes.
Can LUBE-S be integrated into any application? //
LUBE-S can be used in almost all applications, but special applications such as vacuum and cleanroom environments are not suitable for the LUBE-S system.
What are the benefits of MINIRAIL guideways? //
MINIRAIL guideways excel in high precision and durability. Their design ensures high process reliability and allows for speeds of up to 5 m/s and accelerations of up to 300 m/s².
What options enhance the use of MINIRAIL guideways? //
Defined displacement force (VD): For demanding applications, the displacement force can be customized.
Height-matched carriages (HA): In certain cases, the tolerance range of the carriages can be customized to allow for tighter height variations.
Multi-piece rails (ZG): For longer applications, individual rails can be butt-jointed and ground together.
Custom lubrication (KB): For specific areas of use, such as high speeds or extreme temperatures, SCHNEEBERGER offers suitable lubrication solutions.
In what sizes are MINIRAIL guideways available? //
MINIRAIL rails come in standard widths of 7, 9, 12, and 15, as well as wide sizes of 14, 18, 24, and 42. The carriages are available in four lengths: MNNS (short), MNN (standard), MNNL (long), and MNNXL (extra-long).
Can MINIRAIL carriages be interchanged? //
Yes, MINIRAIL carriages are designed to be fully interchangeable with one another at any time. This unit carriage system simplifies inventory management and significantly reduces maintenance effort.
