Micro frictionless tables with roller- or ball cages
Available in the version with roller or ball cages

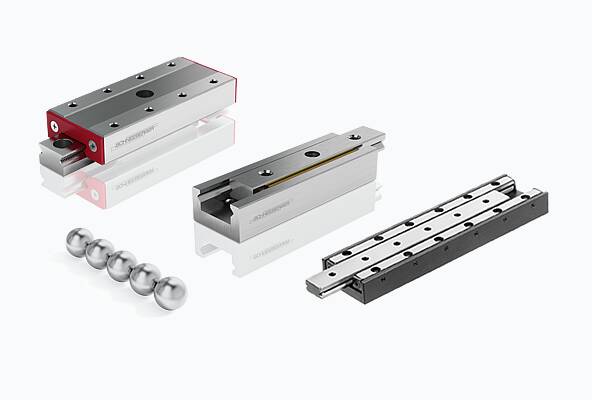

Micro Table with Ball Cage
If a micro table with ball cages is the right solution for you, then the MINISLIDE MS, MINISLIDE MSQ, or NDN types are available options. Optionally, the ND type can also be equipped with a ball cage.
Micro Table with Roller Cage
The micro tables of type ND with standard roller cage type AC are available in three different sizes. The tables are suitable for applications with the highest accuracy requirements, which are fulfilled at lengths of 25 to 155 mm and strokes of 12 to 90 mm. All sizes of the micro tables are equipped with roller cages type AC, a special version with ball cage type AK for lower susceptibility to dirt and higher load capacity is possible.
Micro Table NDN
NDN micro tables are characterized by extremely low friction. The NDN products support high dynamic demands while maintaining the highest precision and longevity.
The new generation of miniature guides with high running culture
This new generation of miniature guides from SCHNEEBERGER is extremely rigid and offers a high running culture. It significantly reduces the dreaded cage wandering. The materials used in the micro table type MINISLIDE MS and the MINISLIDE MSQ allow for use in many application areas such as under high temperature influence or in ultra-high vacuum.
Carriage and rail with integrated gearing
High process reliability is ensured by the cage constraint control, which all our MINISLIDE MSQ tables have. The gearings are integrated directly into the carriage and rail. The cage and gear are made of high-quality plastic. MINISLIDE tables are extremely robust and excel in every application due to their high running culture, precision, and reliability.
Balls or Rollers
Balls provide the highest smoothness of operation, and rollers offer higher rigidity, suitable for the location of the linear table.
Frequently Asked Questions about Micro Frictionless Tables
What are micro frictionless tables from SCHNEEBERGER linear technology?
Micro frictionless tables from SCHNEEBERGER are high-precision mini-linear tables designed for applications that require extremely accurate positioning and movement in the micrometer range. They offer the highest precision in a compact space.
What advantages do SCHNEEBERGER micro frictionless tables offer?
Micro frictionless tables are characterized by their exceptional precision, repeatability, and durability. Thanks to their compact design, they are perfect for micro-positioning applications, such as in optics or the semiconductor industry. They allow precise movements even in minimal space.
What variants and configurations of micro frictionless tables does SCHNEEBERGER offer?
SCHNEEBERGER offers a wide range of micro frictionless tables, available in different sizes and configurations. All models are preloaded for zero play and are ready for use from the factory (Plug & Play). The variants include:
ND: A solution for the highest precision requirements, available in multiple sizes with roller cages.
NDN: This variant offers extremely low sliding resistance and is made from stainless steel.
NDN-KS: Equipped with cage control for extended lifespan and reduced operating costs.
MINISLIDE MS: Suitable for demanding environments, including high temperatures and vacuum.
MINISLIDE MSQ: This version offers high stiffness and load capacity with an O-shaped raceway arrangement.
MINISLIDE MSQscale: Integrated incremental measuring system for guiding and measuring in one system.
How is the installation and maintenance of micro frictionless tables carried out?
Installation requires careful and precise alignment of the micro frictionless tables. Maintenance includes regular cleaning, lubrication, and inspections for wear or damage. SCHNEEBERGER provides detailed instructions for this.
In which applications are SCHNEEBERGER micro frictionless tables used?
Micro frictionless tables are used in a variety of applications, such as optics, semiconductor production, biotechnology, precision metrology, and medical technology. They are essential in areas where submicron-level positioning and movement control are crucial.
